Bolt-On Silicone Hose with Quick Disconnect

Genexhaust Bolt-On Extension – will fit Firman models with spark arrest cover plate #68 or #88

Name: Genexhaust Bolt-On Extension - will fit Firman models with spark arrest cover plate #68 or #88
SKU: genexhaust-firman-generator-exhaust-extension-kit
Availability: InStock

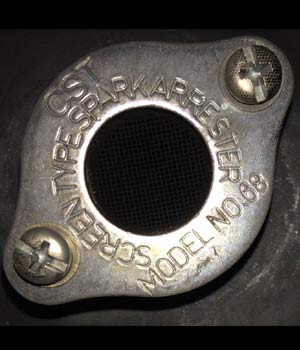

Please select from the options at the bottom of this page to customize your Genexhaust package that will fit Firman models with the spark arrest cover plate #68 or #88. Please scroll through the images to the left and verify that your plate matches one of the two. Prices vary depending on which type of hose you choose and the length of hose you select. Prices are shown as you make your selections. Scroll through the images to see the available hardware for this model.

All available extra options will be shown as you make your selections. Quick Disconnects are only available for 1.5″ diameter hoses. Through-wall kits are available for 1” and 1.5” diameter hoses.

We offer Magnetic Dipsticks that will fit Firman generators that have dipsticks with the following part numbers: P/N 357723513, P/N 330723531, P/N 317723584, and P/N 336723511. If you would like to add a Magnetic Dipstick to your order, you will need to look in your owner’s manual and verify that your generator has a dipstick that matches one of those part numbers. Simply write down the P/N of the dipstick from your generator, and then select the appropriate option when placing your order. We offer Oil Change Tubes that fit Firman generators with dipstick part numbers: P/N 330723531, and P/N 336723511.

Magnetic Dipsticks and Oil Change Tubes are available in two options; anodized and non-anodized. Non-anodized dipsticks are made of aluminum, whereas anodized versions are also aluminum, but go through a coating process that ensures that they will never seize to the aluminum block of the engine. This is especially helpful in marine environments and saltwater environments.

A Through-Wall Kit mounts in the wall of your building or enclosure and allows you to hook up your extension hose and vent your generator exhaust outside. Kits are available in longer and shorter versions for 1" and 1.5” hoses (both for steel or silicone hoses). The longer kit is more suitable for going through thick exterior walls, whereas the shorter kit is more suitable for going through a single layer wall, such as a plastic utility shed.

The longer version of the Through-Wall kit is available in Single or Double Shield. A "Single Shield" kit is one layer of metal, and a "Double Shield" kit has two layers of metal with a space in between each layer, and offers better insulation from the heat of the exhaust. The shorter version of the Through-Wall kit is available in Double Shield only.

Please make a selection in EACH dropdown box to ensure order accuracy. Please carefully review your selections before hitting the "Add to Cart" button, as changes cannot be made to your package in the cart.

Exhaust Tubing Type(Required)

Silicone Tubing Diameter(Required)

1 Inch Silicone Tubing Length(Required)

1.5" Silicone Tubing Length(Required)

Steel Tubing Diameter(Required)

1 Inch Steel Tubing Length(Required)

1.5" Steel Tubing Length(Required)

Quick Disconnect(Required)

Magnetic Dipstick(Required)

If you would like to add a Magnetic Dipstick, select the part number for your dipstick, or choose "Do Not Add"

GE-35 Magnetic Dipstick - Firman P/N 330723531(Required)

GE-132 Magnetic Dipstick - Firman P/N 357723513(Required)

GE-36 Magnetic Dipstick - Firman P/N 317723584(Required)

GE-133 Magnetic Dipstick - Firman P/N 336723511(Required)

Oil Change Tube - 135(Required)

If you would like to add an Oil Change Tube, and your Firman generator has dipstick P/N: 330723531 or P/N: 336723511, then select the option you would like to add from below, or choose "Do Not Add".

Choose Shorter or Longer Version Through-Wall Kit(Required)

Through Wall Kit - Longer - Silicone - 1 Inch(Required)

Through Wall Kit - Longer - Silicone - 1.5 Inch(Required)

Through Wall Kit - Longer - Steel - 1 Inch(Required)

Through Wall Kit - Longer - Steel - 1.5 Inch(Required)

Through Wall Kit - Shorter - Silicone - 1 Inch - GE-115(Required)

Through Wall Kit - Shorter - Silicone - 1.5 Inch - GE-115(Required)

Through Wall Kit - Shorter - Steel - 1 Inch - GE-115(Required)

Through Wall Kit - Shorter - Steel - 1.5 Inch - GE-115(Required)

Total

Subtotal
Options
Total

Category: Bolt-On Extension SKU: genexhaust-firman-generator-exhaust-extension-kit

Genexhaust Bolt-On Extension – will fit Firman models with spark arrest cover plate #68 or #88
