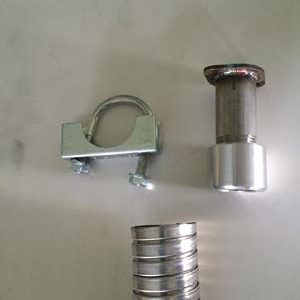

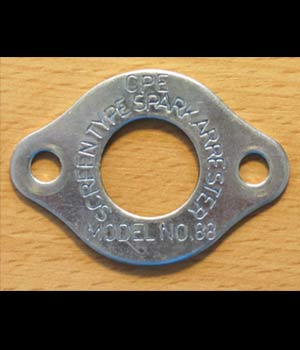

Please select from the options at the bottom of this page to customize your Genexhaust package that will fit a Champion model generator with the spark arrest cover plate #88. Please scroll through the images to the left and verify that your plate matches the spark arrest cover plate shown. Prices vary depending on which type of hose you choose and the length of hose you select. Prices are shown as you make your selections. Scroll through the images to see the available hardware for this model.

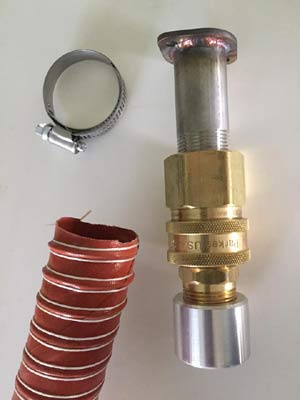

All available extra options will be shown as you make your selections. Quick Disconnects are only available for 1.5″ diameter hoses. Through-wall kits are available for 1” and 1.5” diameter hoses. For any options that you do not wish to add, just select "Do Not Add" from the drop down menu for that option.
Anodized and non-anodized magnetic dipsticks are also available for models with spark arrest cover plate #88, which have dipsticks with the following part numbers: P/N 83.031000.01 (for 2800-3500 Watt models), or for larger watt models, P/N 46.031000.00.48, P/N 46.031000.00 or 22.031000.00.48.
Oil Change Tubes are available to fit Champion Generators with dipstick part numbers: P/N: 83.031000.01, P/N: 46.031000.00, P/N: 22.031000.00.48, P/N: 46.031000.00.48, or P/N: 15010-Z080130-OB00.
If you would like to add a Magnetic Dipstick or Oil Change Tube to your order, you will need to look in your owner’s manual and verify that you have a dipstick that matches one of those part numbers. You can locate the part number for the dipstick in your manual in the parts list, shown after the parts diagram.
Non-anodized Magnetic Dipsticks and Oil Change Tubes are made of aluminum; whereas anodized versions are also aluminum, but go through a coating process that ensures that they will never seize to the aluminum block of the engine. This is especially helpful in marine environments and saltwater environments.
A Through-Wall Kit mounts in the wall of your building or enclosure and allows you to hook up your extension hose and vent your generator exhaust outside. Kits are available in longer and shorter versions for 1" and 1.5” hoses (both for steel or silicone hoses). The longer kit is more suitable for going through thick exterior walls, whereas the shorter kit is more suitable for going through a single layer wall, such as a plastic utility shed.
The longer version of the Through-Wall kit is available in Single or Double Shield. A "Single Shield" kit is one layer of metal, and a "Double Shield" kit has two layers of metal with a space in between each layer, and offers better insulation from the heat of the exhaust. The shorter version of the Through-Wall kit is available in Double Shield only.
Please make a selection in EACH dropdown box to ensure order accuracy. Please carefully review your selections before hitting the "Add to Cart" button, as changes cannot be made to your package in the cart.
