Generator Exhaust Extension Through Wall Exhaust Kit

Genexhaust Hardware Only – will fit Champion models with spark arrest cover plate #88

Name: Genexhaust Hardware Only - will fit Champion models with spark arrest cover plate #88
SKU: genexhaust-champion-generator-exhaust-extension-hardware-88
Availability: InStock

Please select from the options at the bottom of this page if you would like to order the Genexhaust bolt-on hardware without a hose for a Champion model generator with the spark arrest cover plate #88. Please scroll through the images to the left and verify that your plate matches the spark arrest cover plate shown.

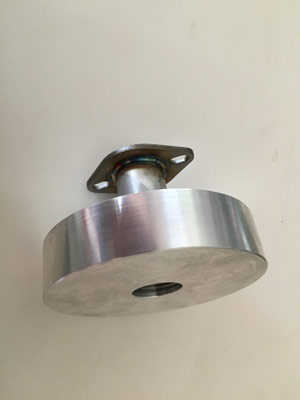

The available options are 1" and 1.5” hardware (both for steel or silicone hose), 3/4” NPT hardware, which can be used with 3/4” NPT threaded steel pipe, or 4” hardware, which is used for dryer exhaust type hoses. 4” aluminum exhaust hoses can be purchased at any hardware store. Scroll through the images to see the available hardware for this model.

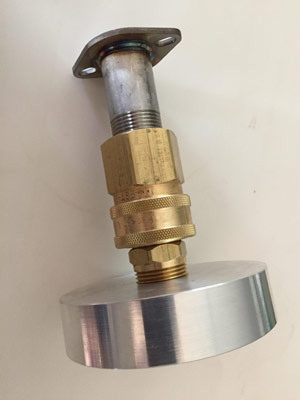

The quick disconnect is an extra option and is not included in the price of the hardware alone. You have the option of adding a discounted quick disconnect for 1.5", 3/4" NPT, and 4" hardware, and a discounted through-wall kit for 1" and 1.5" hardware. The prices for each item are listed as you make your selections. If you do not want to add any additional items, please select Do Not Add from the drop down menu for each field.

A Through-Wall Kit mounts in the wall of your building or enclosure and allows you to hook up your extension hose and vent your generator exhaust outside. Kits are available in longer and shorter versions for 1.5” hoses (both for steel or silicone hoses). The longer kit is more suitable for going through thick exterior walls, whereas the shorter kit is more suitable for going through a single layer wall, such as a plastic utility shed.

The longer version of the Through-Wall kit is available in Single or Double Shield. A "Single Shield" kit is one layer of metal, and a "Double Shield" kit has two layers of metal with a space in between each layer, and offers better insulation from the heat of the exhaust. The shorter version of the Through-Wall kit is available in Double Shield only.

Anodized and non-anodized magnetic dipsticks are also available for models with spark arrest cover plate #88, which have dipsticks with the following part numbers: P/N 83.031000.01 (for 2800-3500 Watt models), or for larger watt models, P/N 46.031000.00.48, P/N 46.031000.00 or 22.031000.00.48.

Oil Change Tubes are available to fit Champion Generators with dipstick part numbers: P/N: 83.031000.01, P/N: 46.031000.00, P/N: 22.031000.00.48, P/N: 46.031000.00.48, or P/N: 15010-Z080130-OB00.

If you would like to add a Magnetic Dipstick or Oil Change Tube to your order, you will need to look in your owner’s manual and verify that you have a dipstick that matches one of those part numbers. You can locate the part number for the dipstick in your manual in the parts list, shown after the parts diagram.

Non-anodized dipsticks are made of aluminum; whereas anodized versions are also aluminum, but go through a coating process that ensures that they will never seize to the aluminum block of the engine. This is especially helpful in marine environments and saltwater environments.

Please make a selection in EACH dropdown box to ensure order accuracy. Please carefully review your selections before hitting the "Add to Cart" button, as changes cannot be made to your package in the cart.

Hardware Size(Required)

Quick Disconnect(Required)

Magnetic Dipstick(Required)

GE-35 Magnetic Dipstick - Champion P/N 83.031000.01(Required)

GE-131 Magnetic Dipstick - Champion P/N 46.031000.00.48(Required)

GE-131 Magnetic Dipstick - Champion P/N 22.031000.00.48(Required)

GE-134 Magnetic Dipstick - Champion P/N 15010-Z080130-OB00(Required)

Oil Change Tube - 135(Required)

Choose 1 Inch Shorter or Longer Version Through-Wall Kit(Required)

Choose 1.5 Inch Shorter or Longer Version Through-Wall Kit(Required)

Longer Through-Wall Kit(Required)

Shorter Through-Wall Kit(Required)

Total

Subtotal
Options
Total

Category: Hardware Only - Bolt-On SKU: genexhaust-champion-generator-exhaust-extension-hardware-88

Genexhaust Hardware Only – will fit Champion models with spark arrest cover plate #88
